To meet international requirement of ZERO emission and make trucks more environmental friendly, the specialized designed and produced ISUZU EV 4x2 light duty cargo truck chassis are used for city logistic and transportation. The new generation ISUZU electric lorry cargo truck equipped with 1 set Lithium Iron P hosphate battery, with top 1 Chinese brand CATL model and power can be up to 70.59kWh. matched equipped with BOSCH brand Permanent Magnet Synchronous motor TZ220XS150, peak power can be 160kw, equal to 218HP. New general mini ELF cabin with 2+1 seat for comfortable driving, equipped with levers-type gearshift mechanism, similar like cars, very convenient for operation and driving. Standard wheelbase is 3365mm, which can be matched with dropside cargo body kit with recommend size 4250x2000x360mm. Standard 185R16lt 6PR tires, full air brake device with ABS for long and safety driving.

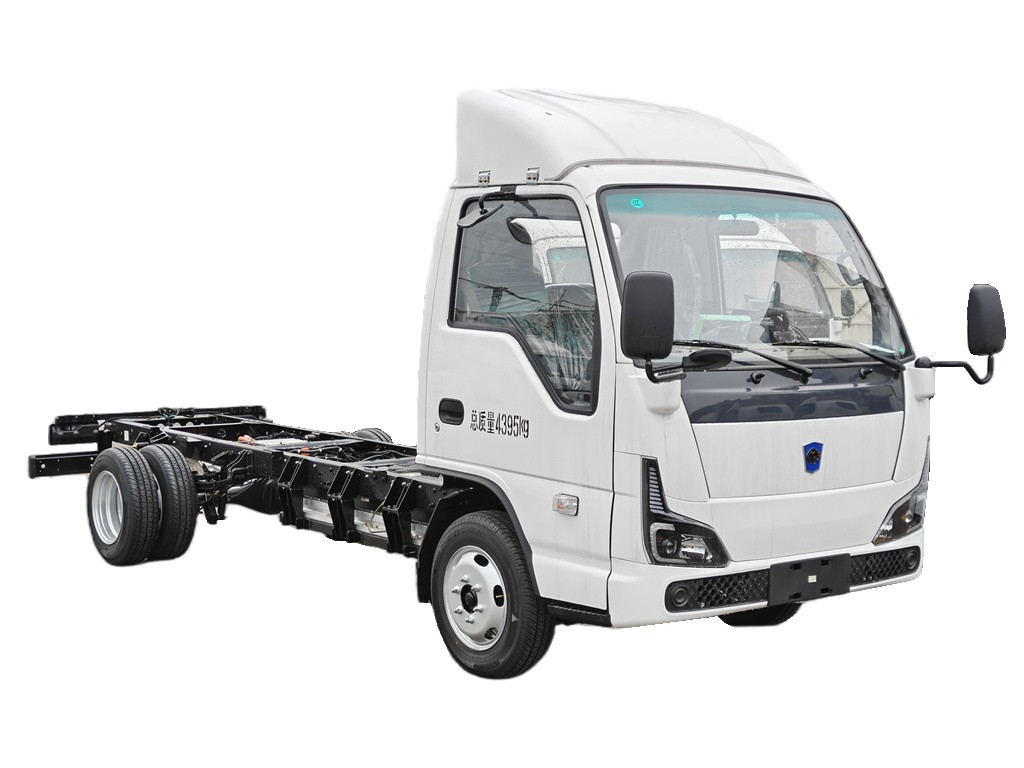

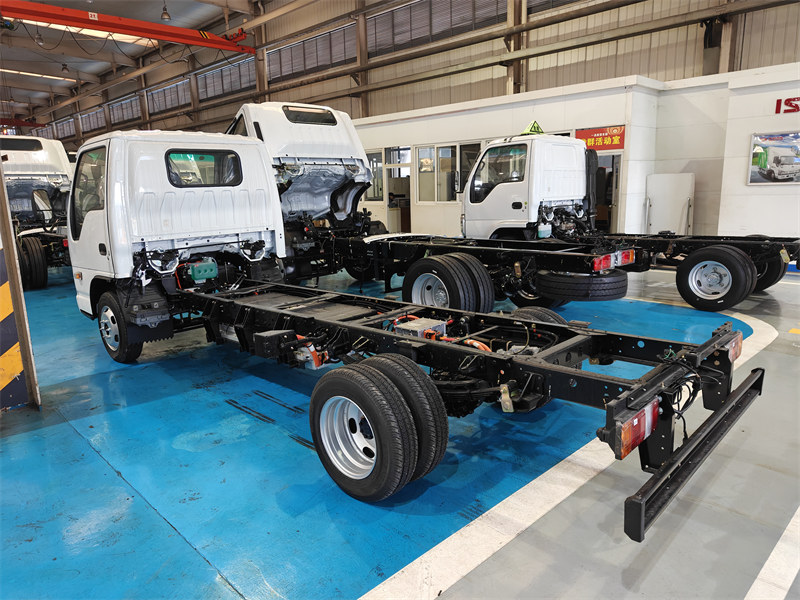

* ISUZU mini 4x2 Electric Lorry Cargo Truck

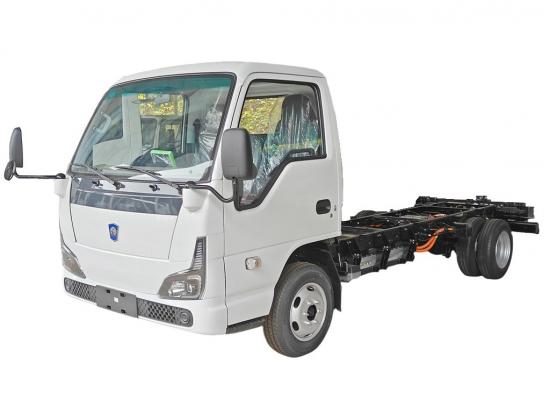

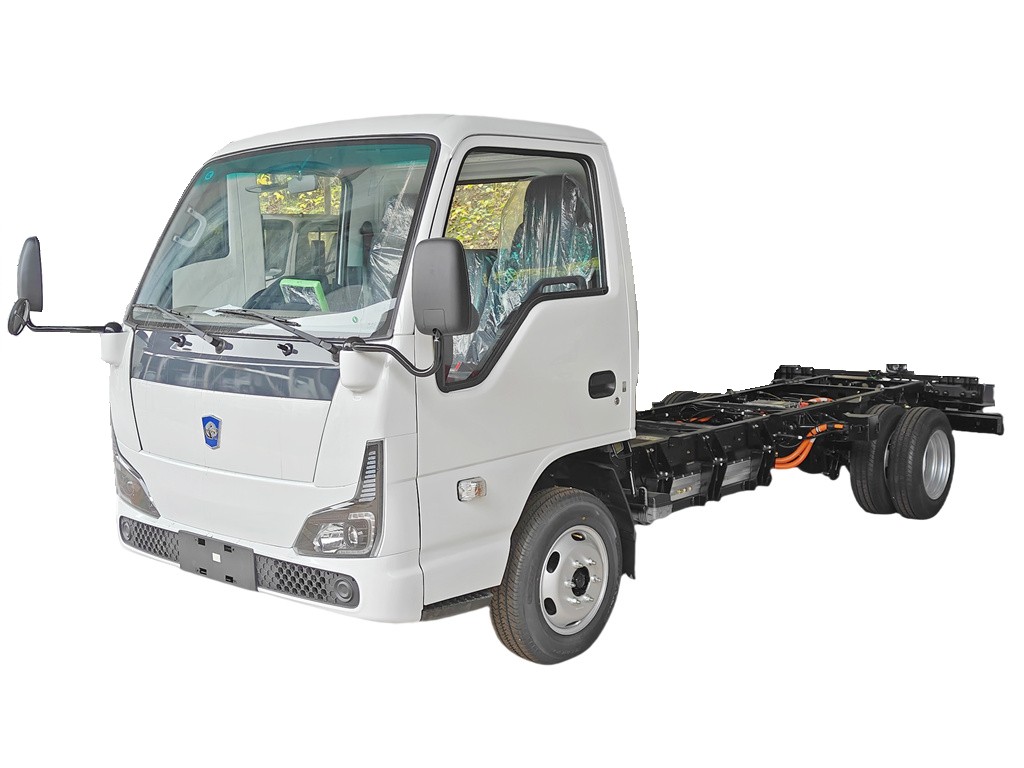

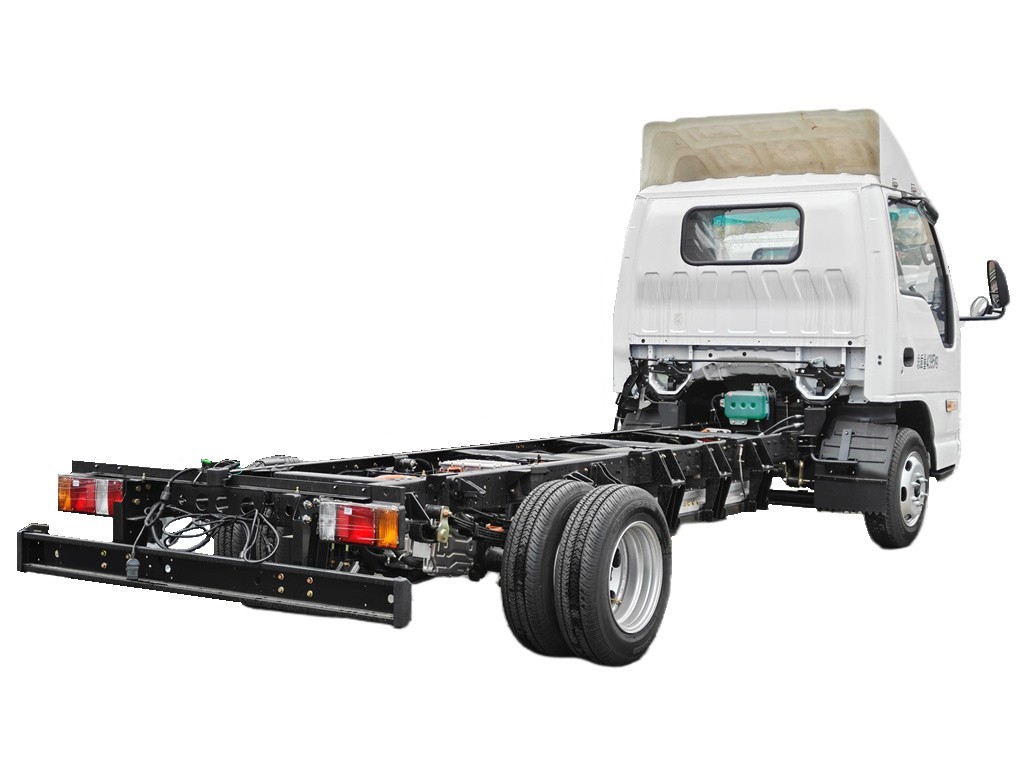

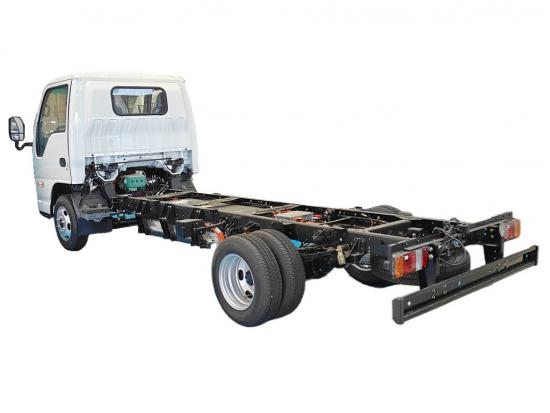

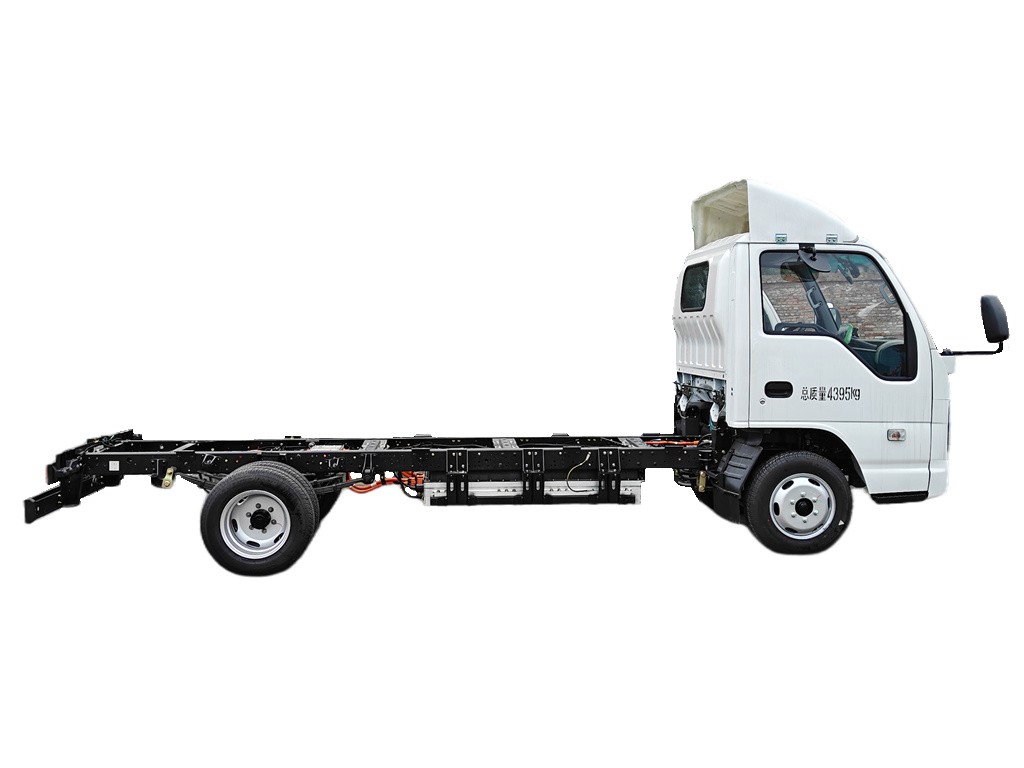

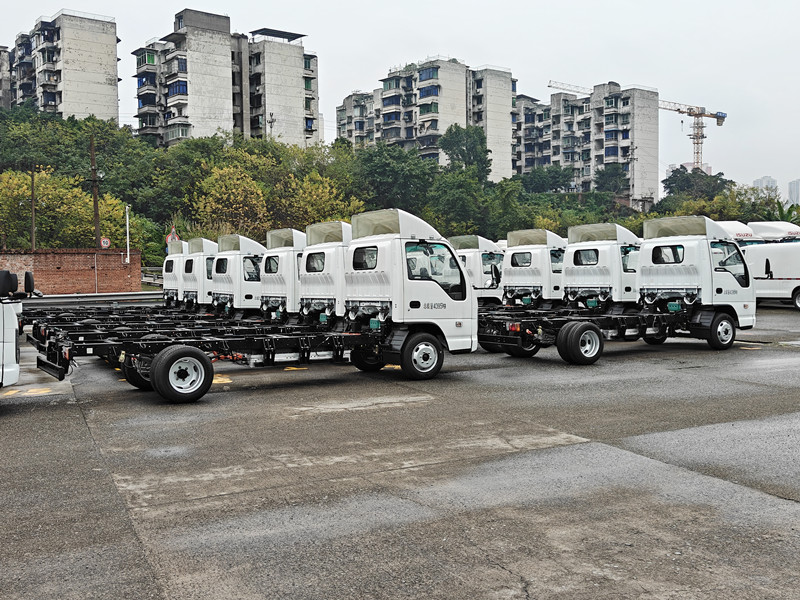

ISUZU 4x2 EV truck chassis*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

▶ Main Features:

★ BOSCH brand Permanent Magnet Synchronous motor TZ220XS150 , 200,000 Km without prblem

★ CATL Lithium Iron P hosphate battery, with power 70.59kWh

★ New generation ISUZU mini ELF cabin, 2+1 seats, EURO design

★ Multiple upper body kits can be customized as wish

★ Efficiently driving distance can be over 300km

▶ ISUZU 10 wheeler Tractor Head Parameters :

▶ Isuzu electric Cargo Lorry Truck Chassis Component :

ISUZU Electric Cargo Lorry Truck with independent research and development innovation, including world first level electric control system, which improves performance and manages energy efficiency, high integeration, hard computation. Equipped with TOP 1 Chinese brand CATL battery with model L203E03, efficiently voltage 347.76V and power 70.59kWh, small size, large power, energy density increased by 48%, battery weight reduced to 492kg, cycle life increased to 4500cycles. Also have intellogent connections and Zero emission for environmental protection. The fast charging ability can make transportation more efficiency. below showing the component of the ISUZU Electric Prime Mover with semitrailer.

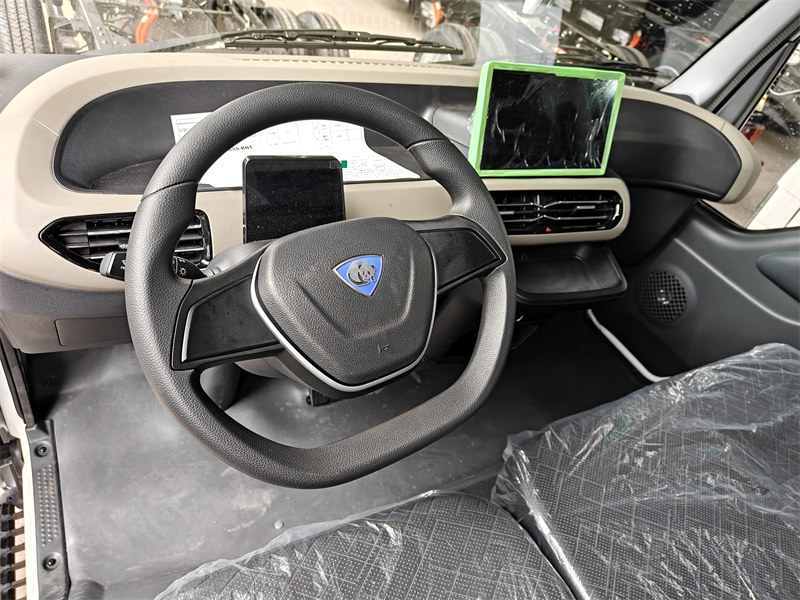

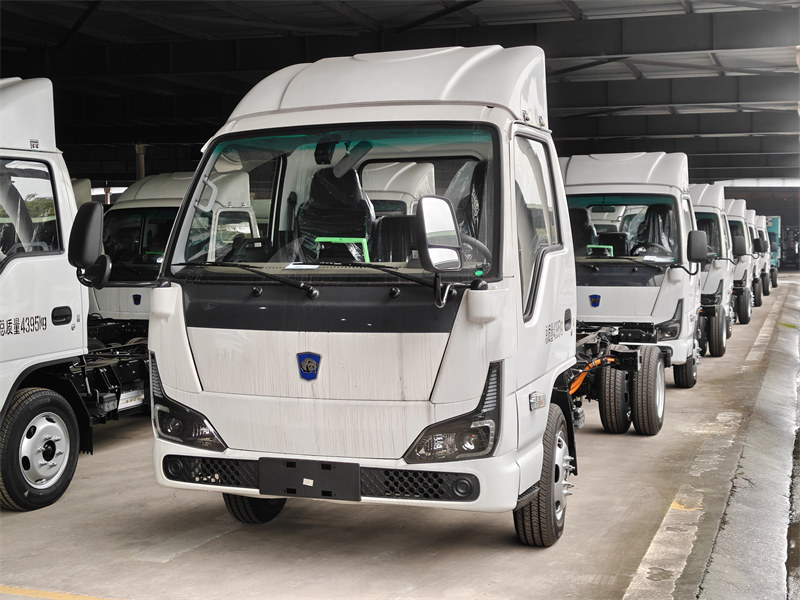

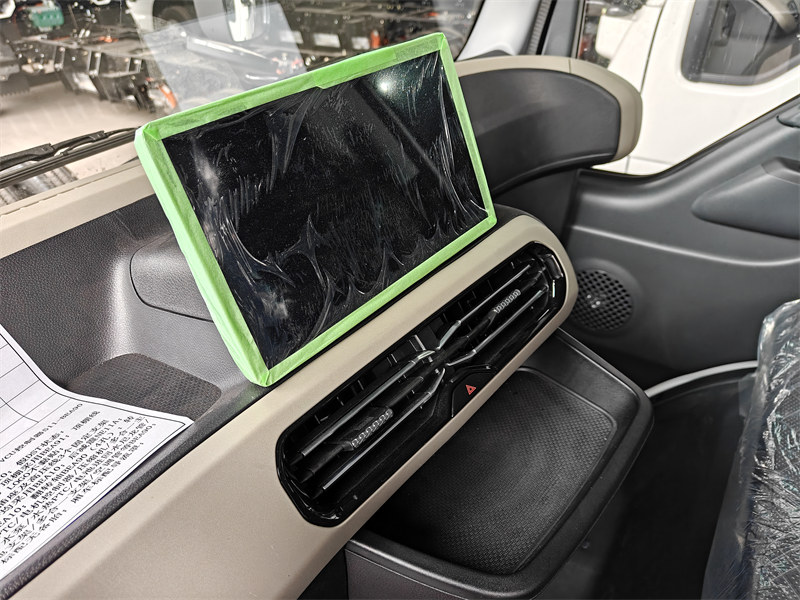

Isuzu EV truck with new generation cabin, integrated control device, similar like cars, safety and comfortable driving feeling

•
•
•

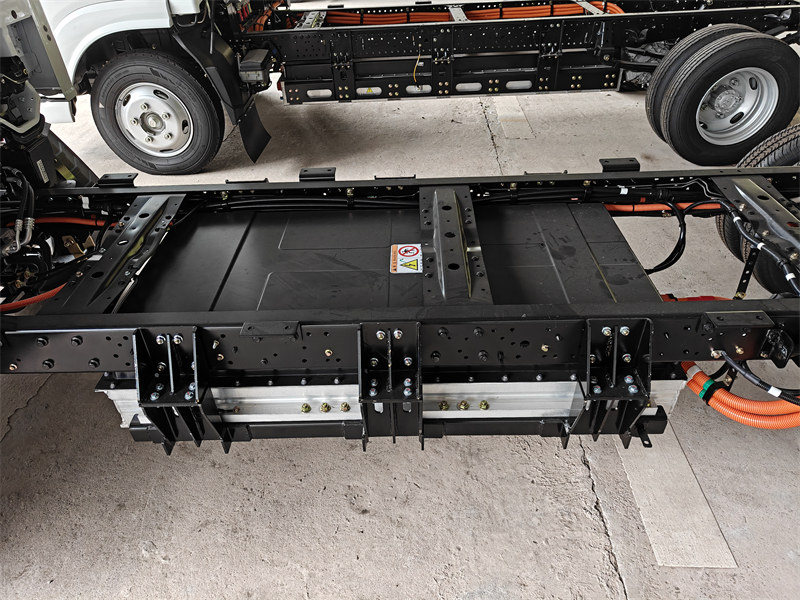

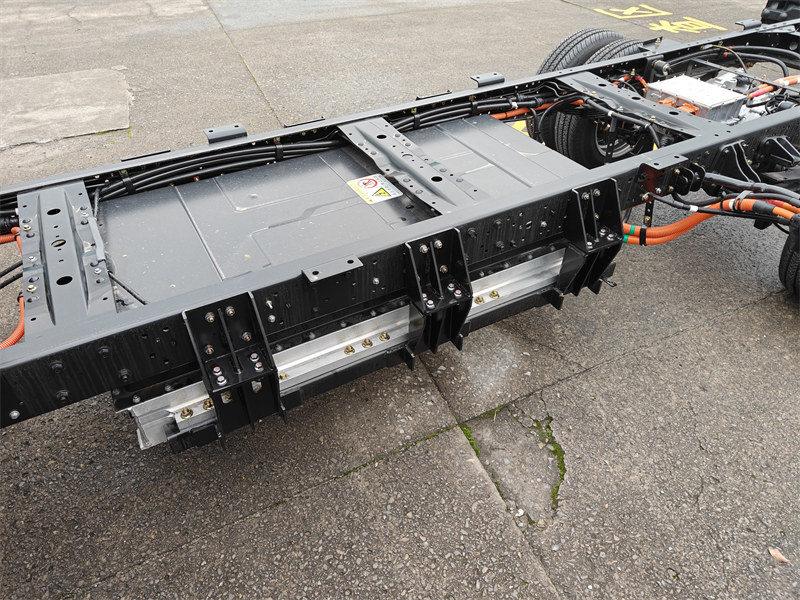

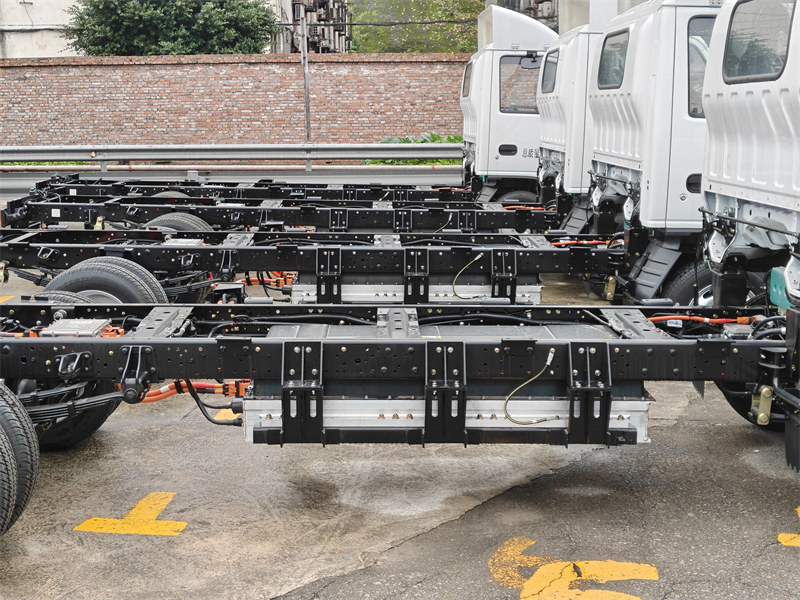

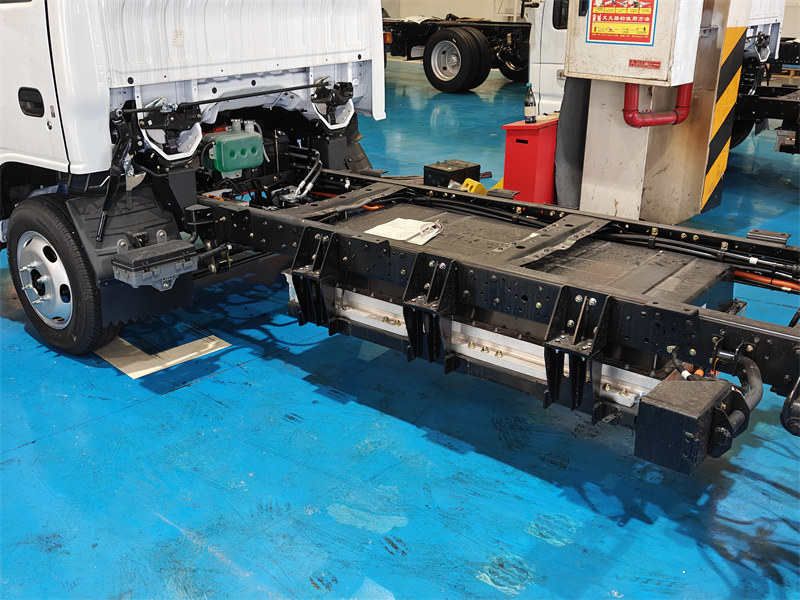

ISUZU EV cargo truck chassis with CATL power

Rated Voltage: 347.76V

Rated Power: 70.59 kWh

Battery Type: LI-ION BATTERY PACK

Battery Model: L203E03

Battery Weight: 492 kg

•
•
•

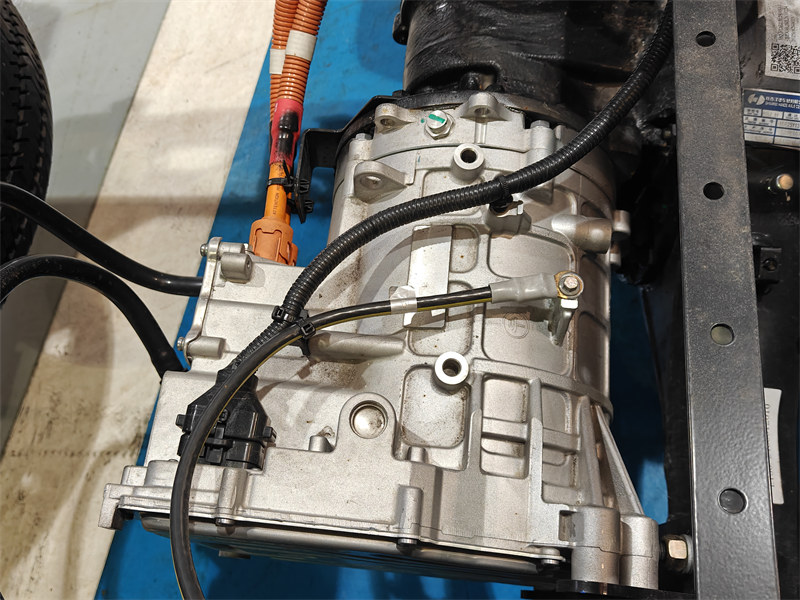

ISUZU EV cargo truck chassis with Motor

Developed by BOSCH and cooperated with ISUZU truck chassis, which have powerful output and lower consumption.

Model: TZ220XS150

Peak / Rated Power: 160Kw / 70Kw

Peak / Rated Torque: 325N.m / 170N.m

Maximum Speed: 12000rpm

Rated Voltage: 350Vdc

ISUZU Electric truck battery controller

•

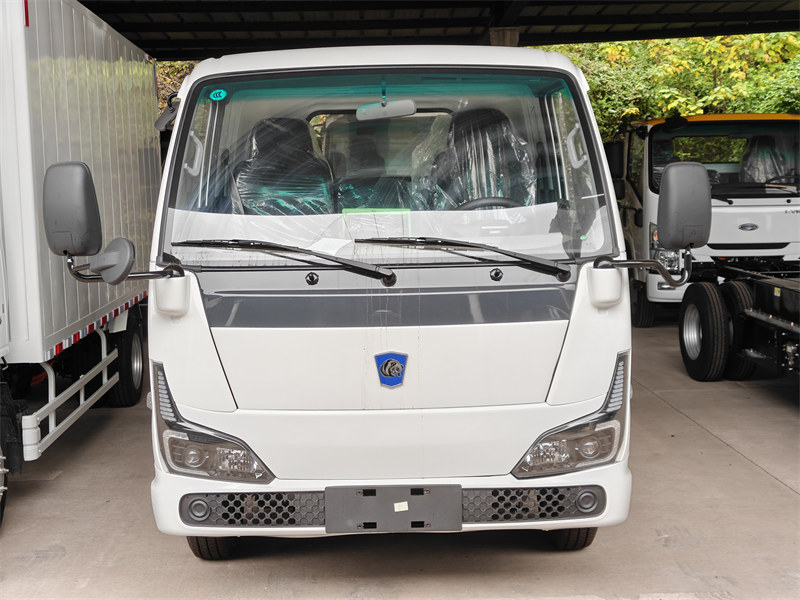

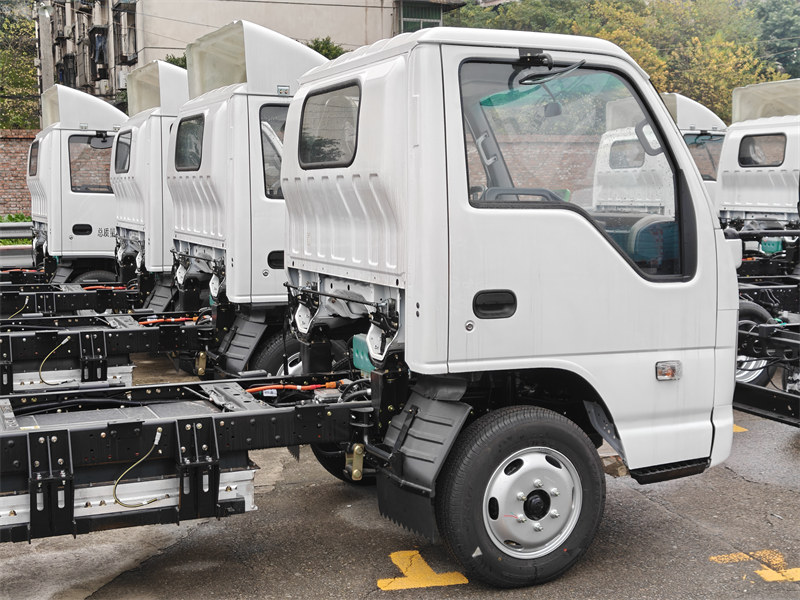

  ISUZU electric lorry cargo truck cabin
•

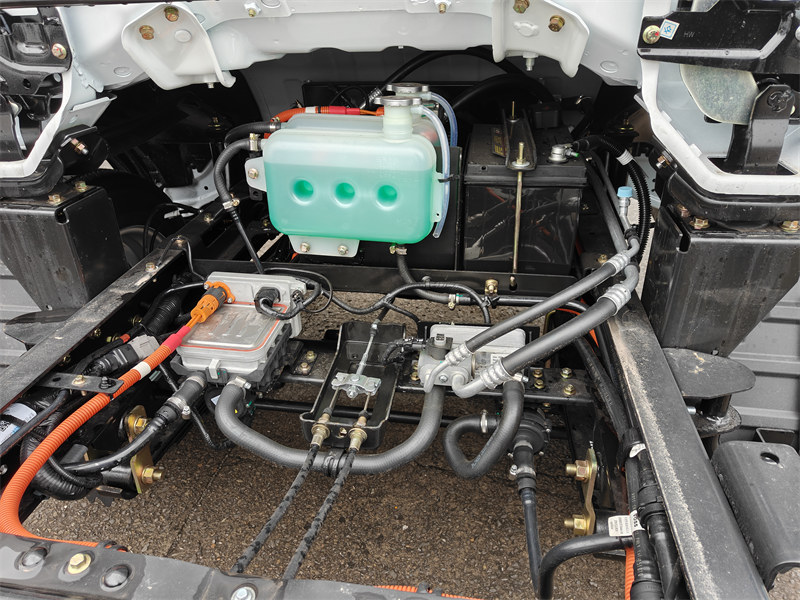

  ISUZU EV truck controller
•

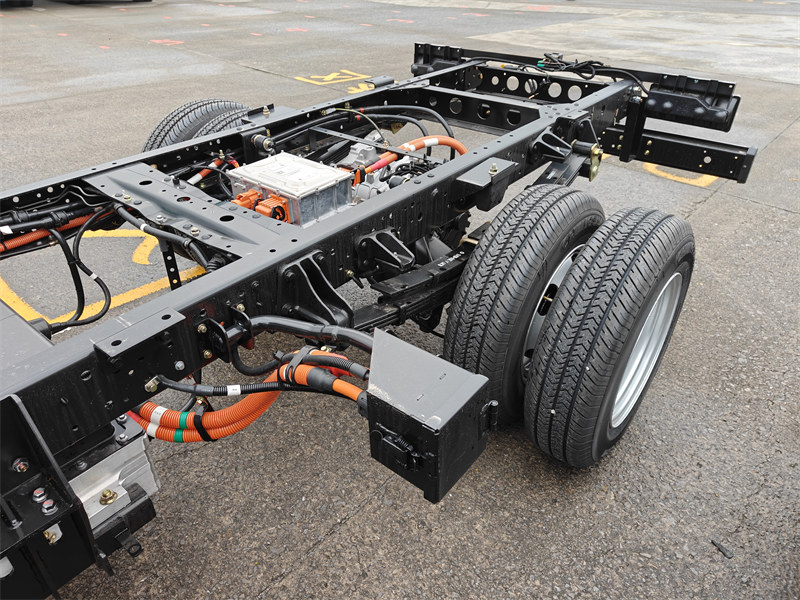

  ISUZU lorry truck with durable rear axle

•

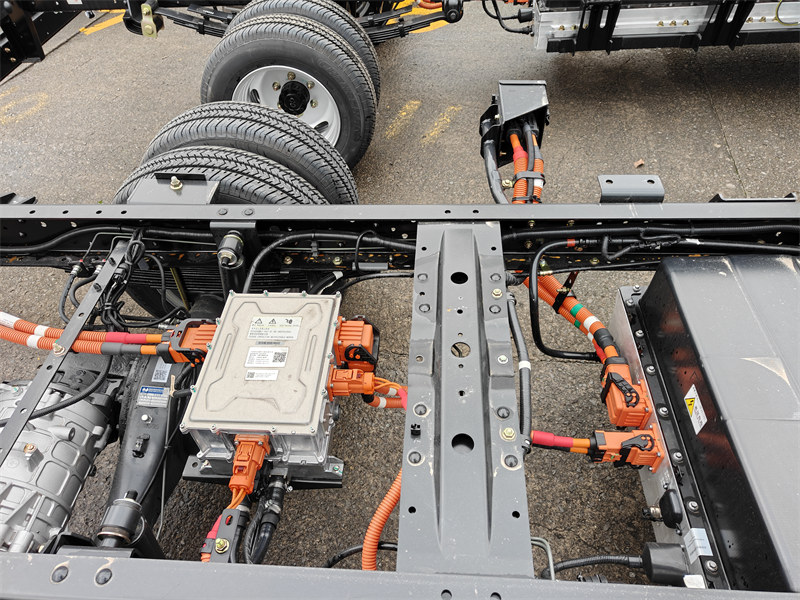

  EV truck chassis battery controller
•

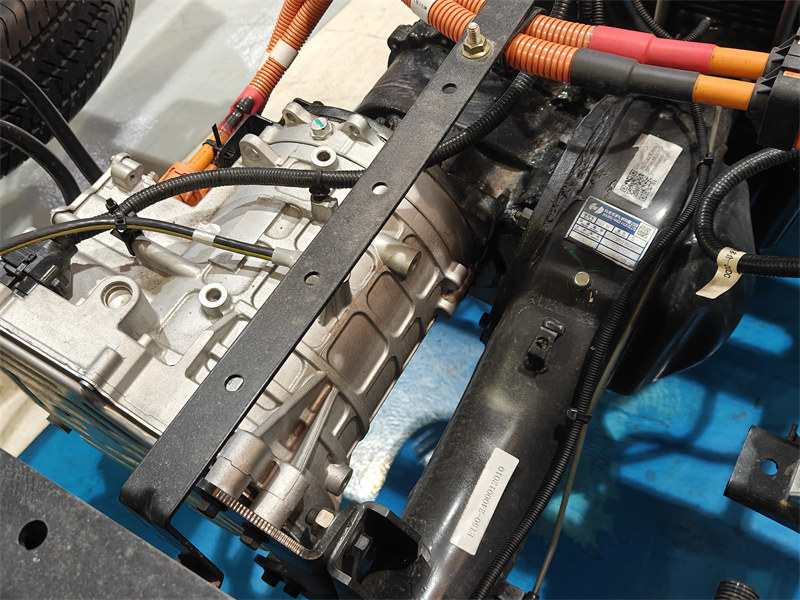

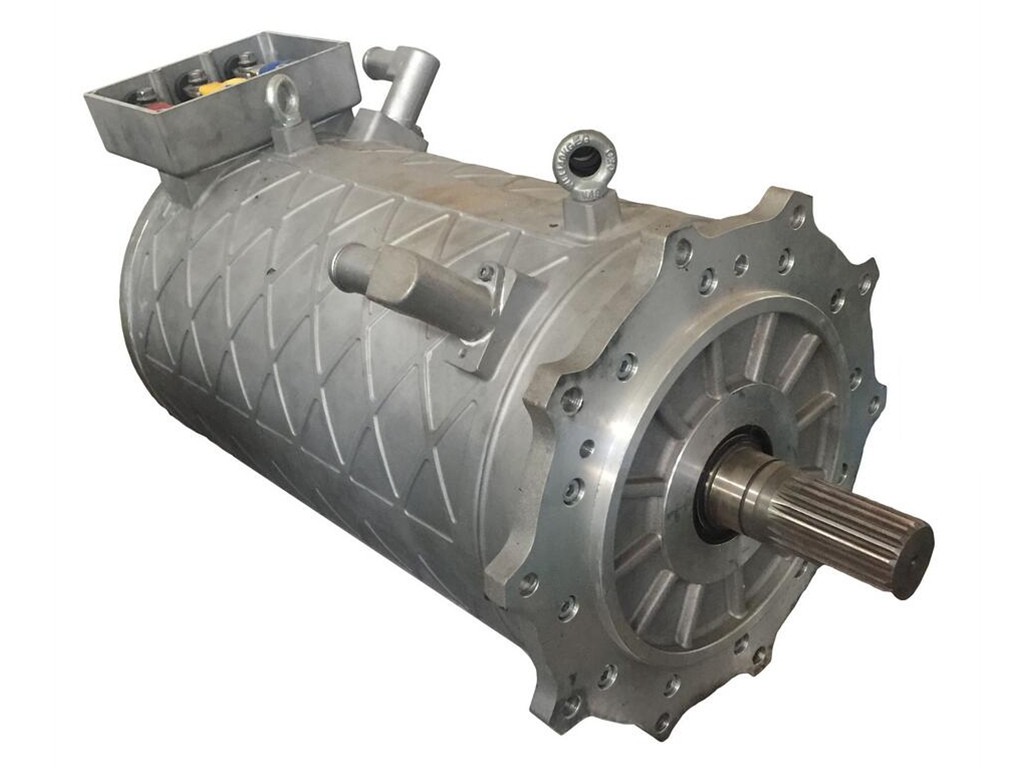

  BOSCH brand motor for efficiently driving
•

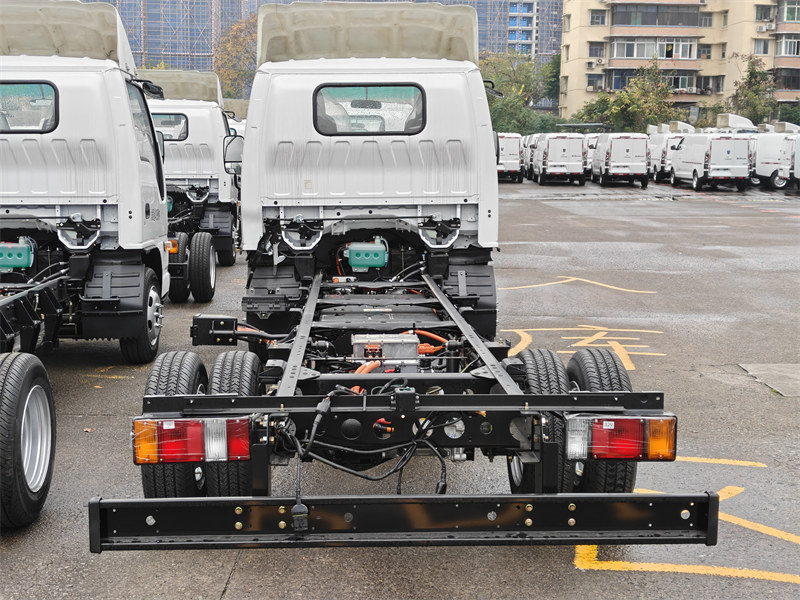

  Rear LED light for back up and safety

▶ ISUZU EV Truck Axle Adtvantages :

The Second generation light duty ISUZU Truck Electric drive axle features:

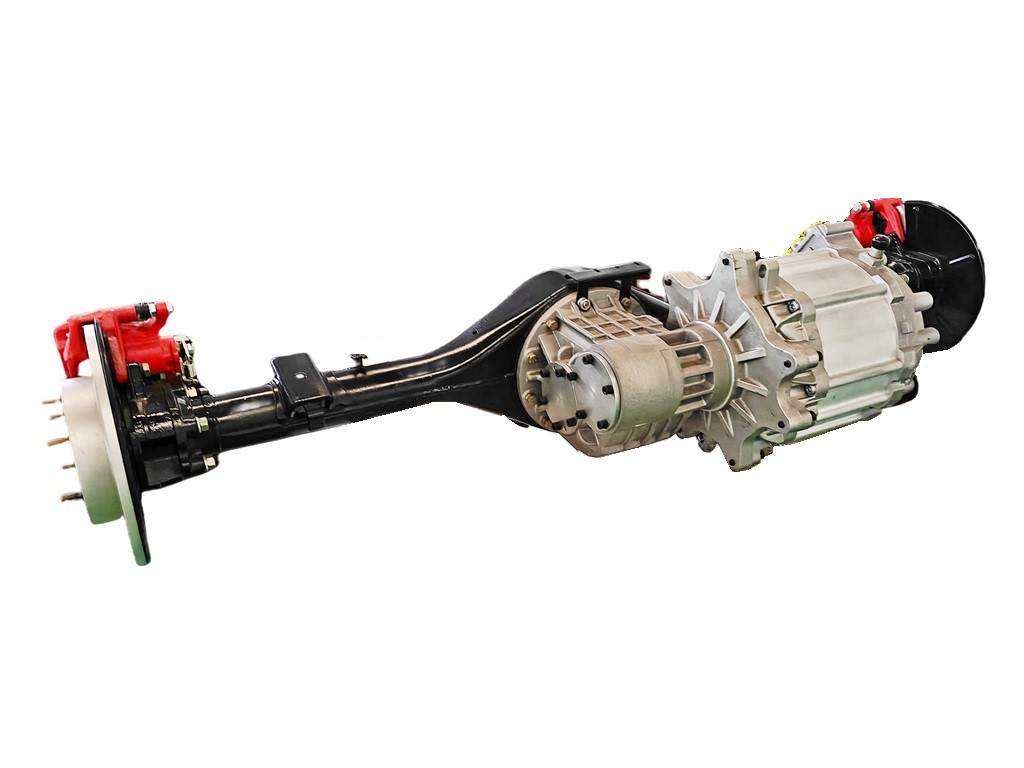

Model: QEA25 electric driving axle

Weight: 169 kg

Capacity: 2.5 T

Motor Peak / Rated Power: 160 KW / 70 KW

Motor Peak / Rated Torque: 325 N.m / 170 N.m

Maximum Speed: 12000 rpm

Truck Axle Maximum Torque Output: 3290 N.m

Developed with Bosch, efficiently loading capacity range form 2.5tons, efficiently service driving life can be over 300000km.

The entire bridge adopts a segmented structure, with the motor and transmission housed in a single casing. The structure is compact and the weight is lighter. Utilizing high-speed water-cooled flat-wire high-voltage motor, SiC controller, full cylindrical helical gear design, high-precision grinding process, and maintenance-free low rolling resistance wheel end, the efficiency exceeds 93%.

▶ Customized ISUZU 4x2 Electric Special Purpose Trucks :

ISUZU mini EV 3CBM refuse compactor truck

Customized as ISUZU mini electric garbage compactor truck with volume can be optional as 3cnm or 4cbm, full electric power with zero emission, efficiently avoid second pollution

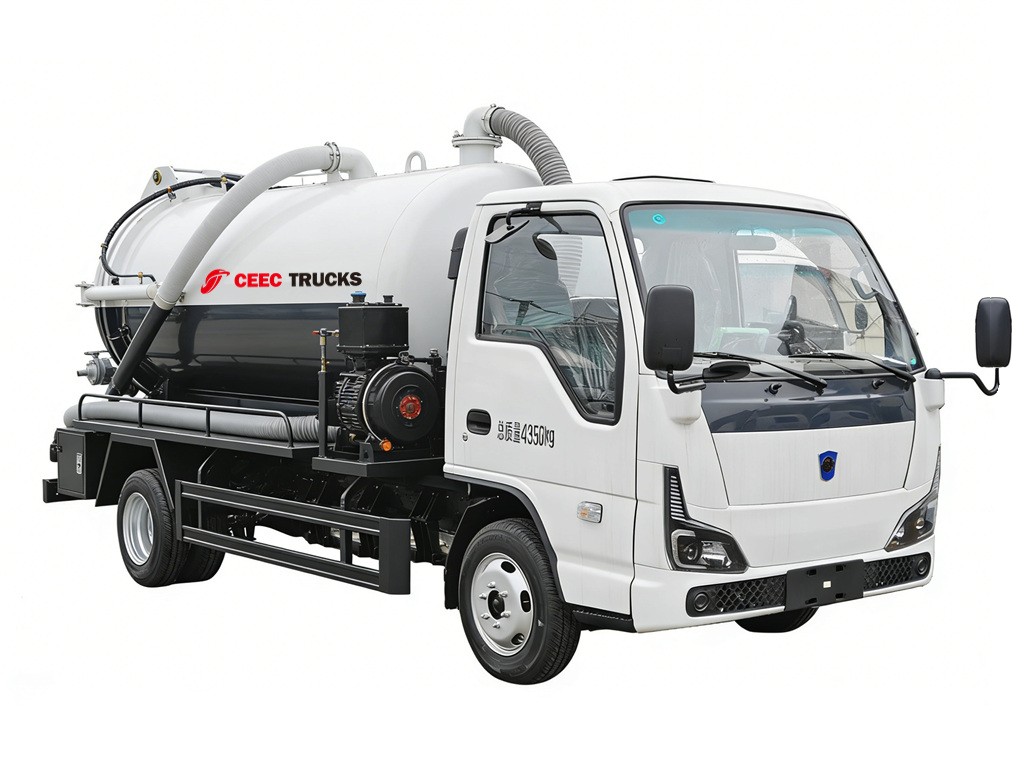

ISUZU 3000Liters vacuum pumper truck

Designed and manufacturered by CEEC TRUCKS, customized as rotation ISUZU Electric sewage vacuum trucks, customized to be equipped with multiple vacuum pumps:

Italy brand: MORO, JUROP, Battioni Pagani (BP), etc

Chinese brand: WEILONG, YIFENG, etc

ISUZU freezer truck with Thermo King Unit

100% customized ISUZU EV freezer truck can have the refrigerated body kit size optional from 3500mm to 4250mm, efficiently capacity can be range from 20 m³. Working temperature can be -15℃

Optional to be equipped with multiple brand refrigetated unit: CARRIER, THERMO KING, KAIXUE, etc.

•

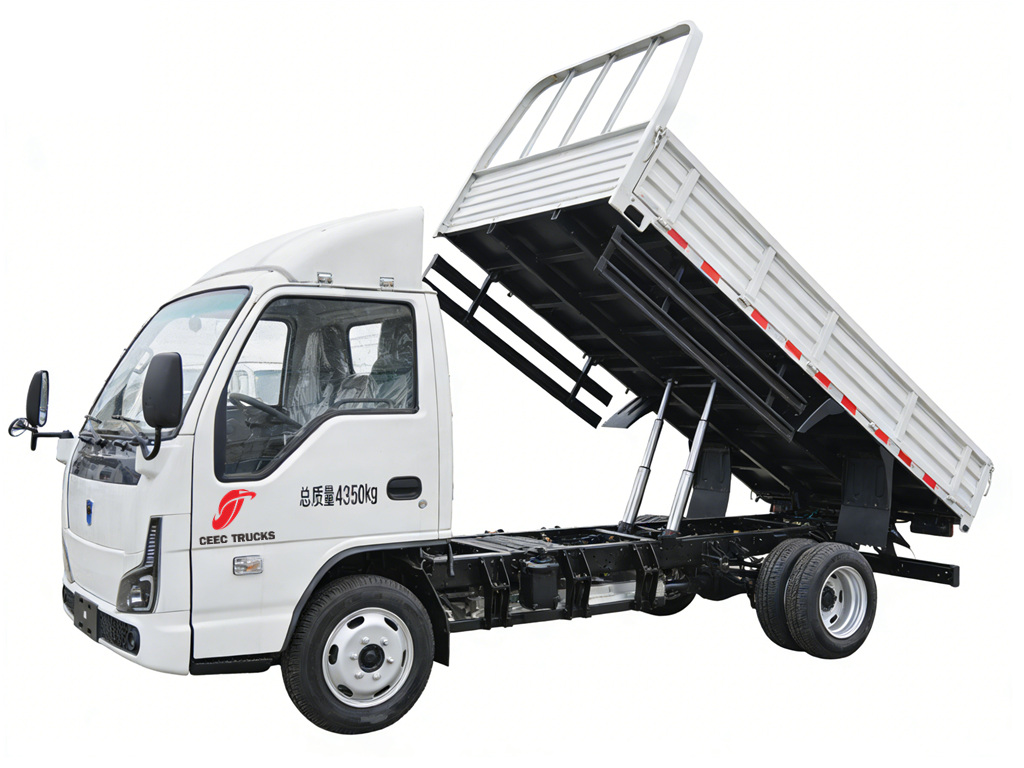

  ISUZU ELECTRIC DUMP TIPPER TRUCK
•

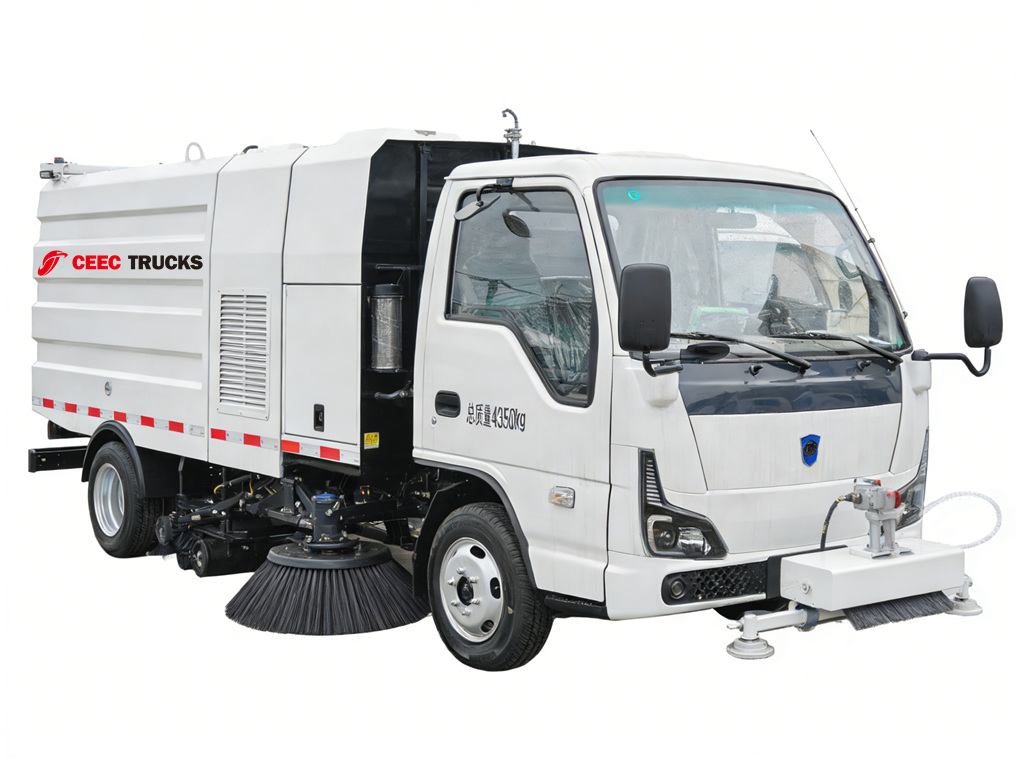

  ISUZU road sweeper tanker truck 3+1CBM
•

  ISUZU 2tons dropside cargo truck
